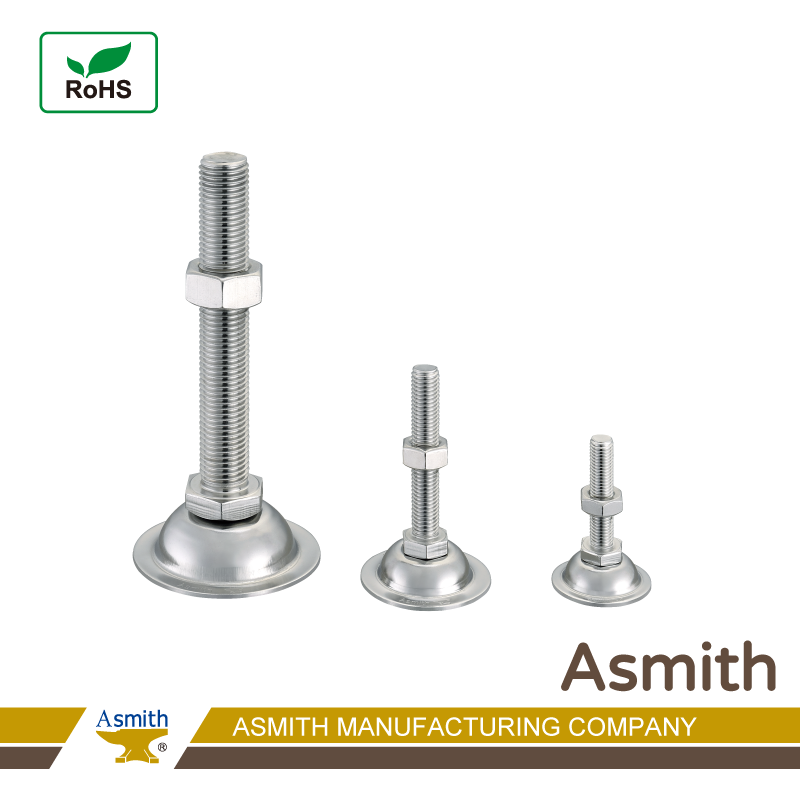

Articulating Leveling Feet
DK(S)S-10 series- (M20)
Features
Load capacity 900 kgf. Resistance to rust (DS Series), abrasion,resistance to heat and corrosion.

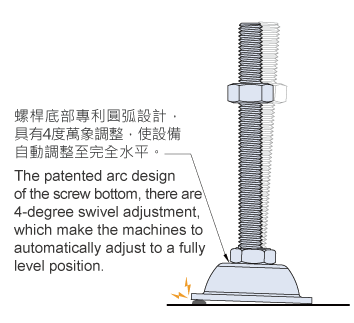

★The patented arc design of the screw bottom, there are 4-degree swivel adjustment, which make the machines to automatically adjust to a fully level position.
The screw is smooth, easily & quickly install.

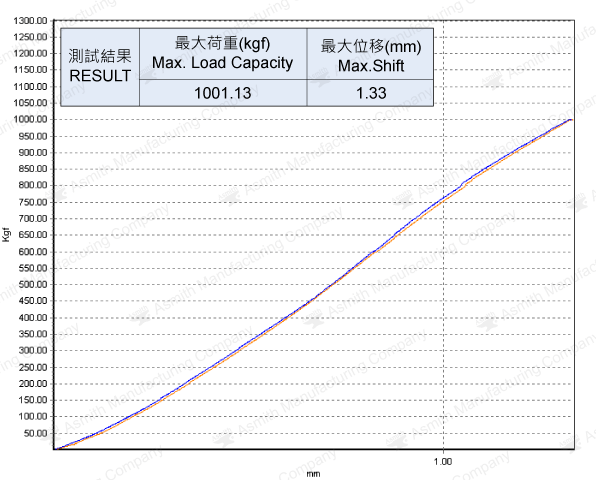

✩The recommended load capacity is base on the graph, the actual damage load capacity is more than the recommended load capacity. For avoid the uneven distribution of machine weight, please follow the recommend load capacity.
➤Material-Base: DK-10 Steel (SCM)-zinc plated. DS-10 Stainless steel (SUS304)-Vibration ground.
➤Material-Bolt : DK-10 Steel (SCM)-zinc plated. DS-10 Stainless steel (SUS304)- Electro Polishing.
★The patented arc design of the screw bottom, there are 4-degree swivel adjustment, which make the machines to automatically adjust to a fully level position.
The screw is smooth, easily & quickly install.
✩The recommended load capacity is base on the graph, the actual damage load capacity is more than the recommended load capacity. For avoid the uneven distribution of machine weight, please follow the recommend load capacity.
➤Material-Base: DK-10 Steel (SCM)-zinc plated. DS-10 Stainless steel (SUS304)-Vibration ground.
➤Material-Bolt : DK-10 Steel (SCM)-zinc plated. DS-10 Stainless steel (SUS304)- Electro Polishing.

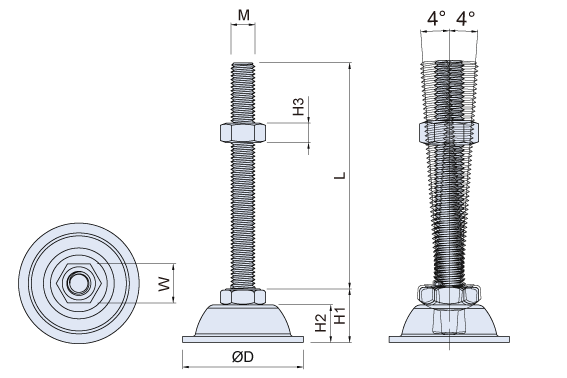

Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
