Draw Latches (Spring Loaded Type)

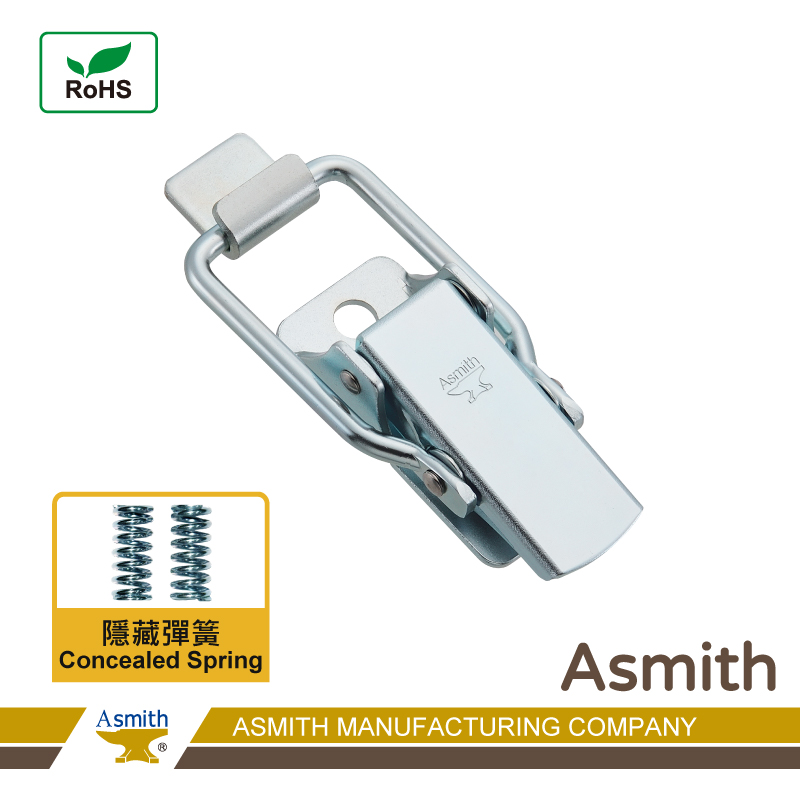

CT-5030-W - Wire Loop Concealed Spring Loaded Toggle Latch, Draw Latch

CT-5030-W (Concealed Spring)

Features

Wire Loop Concealed Spring Loaded Toggle Latch, Draw Latch｜The draw latch is equipped with dual concealed strong springs with a tightening function, which is excellent for vibration equipment.
Excellent aesthetic appearance and smooth surface, in accordance with RoHS.
Installation can be done by welding or screw mounting. Multiple interchangeable latch keepers are available below for selection.
➤Material:SPCC(cold-rolled steel)-zinc plated.

2D 3D Catalog Inquiry ☑️

　Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS

Item No.	Kind	Type	Material	Finish	Extension Length ＼ Compression Force (1 kgf ≒ 10 N)				Lock	Size L x W	Weight (g)
Item No.	Kind	Type	Material	Finish	1mm	2mm	3mm	4mm	Lock	Size L x W	Weight (g)
CT-5030-W	Screw fixing or welding type	With keeper	Steel (SPCC)	Zinc plated	20	28	34	42	N/A	130x52	215

　Unit: mm [※1 kgf ≒ 10 N]Alternative or choosable accessories

Item No.	Kind	Material	Finish
CS-0130-2	Horizontal Keeper	SUS304	Vibration ground
CT-0130-2	Horizontal Keeper	Steel (SPCC)	Zinc plated
CS-0120-3	Vertical Keeper	SUS304	Vibration ground
CT-0120-3	Vertical Keeper	Steel (SPCC)	Zinc plated
CS-0220-3	Vertical Keeper	SUS304	Vibration ground
CS-0230-3	Vertical Keeper	SUS304	Vibration ground
CS-0220-2	Horizontal Keeper	SUS304	Vibration ground
CT-0220-2	Horizontal Keeper	Steel (SPCC)	Zinc plated
