Draw Latches (Spring Loaded Type)

CS(T)-08302 - SUS304 / Assistance Latch-Spring Hook Toggle Latch, Draw Latch

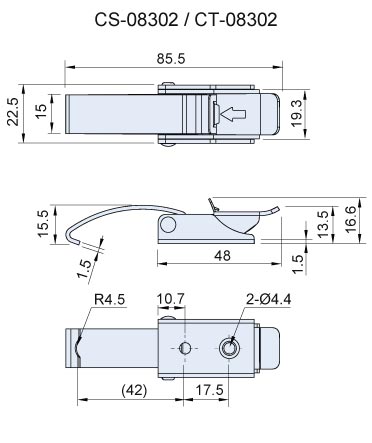

CS(T)-08302 (Assistance Latch)

Features
  • 5c00dfe917c2d5d12c57e73f05274f04
  • b0db7cab8764cdc4bca884cd4abc2b4b
Assistance Latch-Spring Hook Toggle Latch, Draw Latch|Loading included 50 kgf.
Sheet metal flexible arc hook, special hook design can easily and directly lock or hooked screws without latch keeper.
Make use of assistance latches and locks to do an additional protection, avoid seriously vibrating, suddenly opened, and loading huge capacity.
In accordance with RoHS.
➤Material-Body: CS: SUS304-vibration ground / CT: SPCC-zinc plated.
➤Material-Hook: CS: SUS420-vibration ground + coating / CT: SPCC-zinc plated.
➤Material-Lock: CS / CT: SUS301-vibration ground.
 Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Item No.Kind Type Material Finish Lock Size L x W Load Capacity
(kgf)
Weight
(g)
⊕ Screw-onWithout keeperSUS304Vibration groundAssistance Latch85.5x22.55044.7
⊕ Screw-onWithout keeperSteel (SPCC)Zinc platedAssistance Latch85.5x22.55045.4
  • f2185a1b575f36dc91ea59b57161f873
