Draw Latches (Spring Loaded Type)

CS(T)-19 - SUS304 / Spring Wire Loop Latch, Draw Latch

CS(T)-19 series

Features
  • 5c00dfe917c2d5d12c57e73f05274f04
  • b0db7cab8764cdc4bca884cd4abc2b4b
Spring Wire Loop Latch, Draw Latch|The proposed load of 18~23.5 kgf, with metal elastic arc hook.
The durable design of the wire loop prevents it from loosening after a long time use.
Various sizes are available.
Excellent aesthetic appearance, in accordance with RoHS.
➤Material: SUS304(Stainless steel)-vibration ground, SPCC(cold-rolled steel)-zinc plated
 Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Item No.Kind Type Material Finish Lock Size L x W Load Capacity
(kgf)
Weight
(g)
⊕ Screw-onWith keeperSUS304Vibration groundN/A63.9x22.22223.5
⊕ Screw-onWith keeperSUS304Vibration groundN/A70x22.22118.6
⊕ Screw-onWith keeperSUS304Vibration groundN/A75.6x22.22018.6
⊕ Screw-onWith keeperSUS304Vibration groundN/A66.8x22.22123.4
⊕ Screw-onWith keeperSUS304Vibration groundN/A73x22.22018.5
⊕ Screw-onWith keeperSUS304Vibration groundN/A78.6x22.22218.5
⊕ Screw-onWith keeperSteel (SPCC)Zinc platedN/A63.9x22.22222.9
⊕ Screw-onWith keeperSteel (SPCC)Zinc platedN/A70x22.22218.2
⊕ Screw-onWith keeperSteel (SPCC)Zinc platedN/A75.6x22.22218.2
⊕ Screw-onWith keeperSteel (SPCC)Zinc platedN/A66.8x22.22222.8
⊕ Screw-onWith keeperSteel (SPCC)Zinc platedN/A73x22.22222.8
⊕ Screw-onWith keeperSteel (SPCC)Zinc platedN/A78.6x22.22218.1
  • 98b2c99c956a7856812f8c81bb7cd495
  • d1e664cade3bd083c0ae88a32f1851bb
  • bd026f496fb45d669e3d6592cfa93dc0
  • c3662852a3ec6ac3fcff80c01b49f2d5
  • ba8f1e9c05339294d0c446daf9634992
  • d0c879b501dacf66053d553ec94c176b

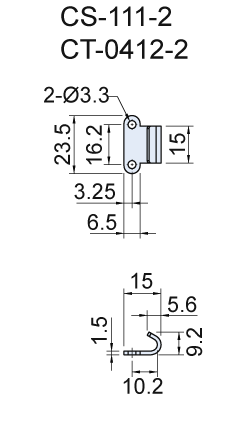

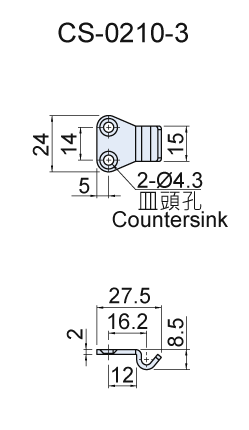

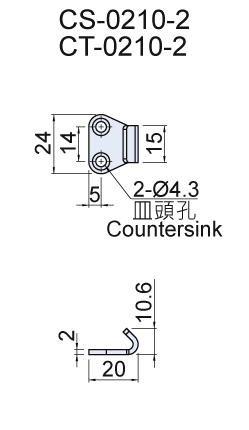

 Unit: mm [※1 kgf ≒ 10 N]Alternative or choosable accessories
Item No.Kind Material Finish

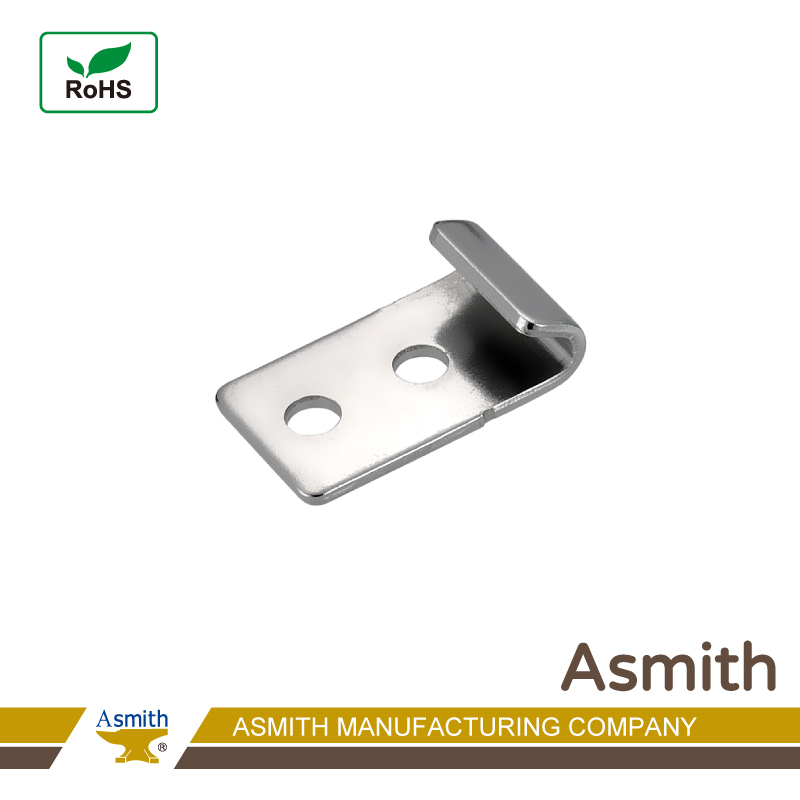

  Horizontal Keeper SUS304 Vibration ground
  Horizontal Keeper Steel (SPCC) Zinc plated
  Horizontal Keeper SUS304 Vibration ground
  Horizontal Keeper Steel (SPCC) Zinc plated
  Vertical Keeper SUS304 Vibration ground
  Vertical Keeper Steel (SPCC) Zinc plated
  Horizontal Keeper SUS304 Vibration ground
  Horizontal Keeper Steel (SPCC) Zinc plated
  Vertical Keeper SUS304 Vibration ground
  Horizontal Keeper SUS304 Vibration ground
  Horizontal Keeper Steel (SPCC) Zinc plated
  • 935a7a548620930bf2cd76289acc306a
  • a7d04a6f6e89d747a47430648d51bd23
  • d26889adbbb4c24f7e93d014dcfedc54
  • a535cbeb7dee9f8791ca275bafdfeda4
  • c92bcb9635940e6250d99379ed92eb33
  • 3c28847e2a8bde46238f49200c59bda8
