Asmith-工業用金物専門の製造 - 製品 - レンチ - 標準型デジタルトルクレンチ

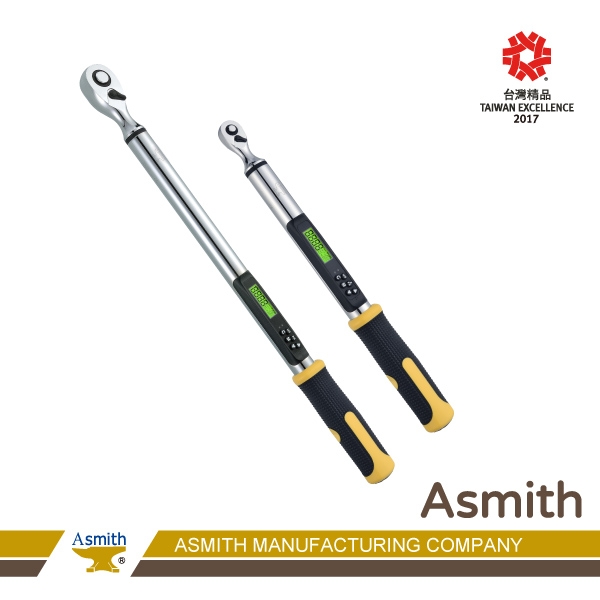

WQ series - Digital Torque Wrench & Electronic Torque Wrench

WQ(-C) series (4.5~1000 Nm)

特徴

1. 内蔵圧力感応センサー、数字で正確なトルク値を表示する。
2. 2種類のモード：F（トラック）/ K（ピーク）。
3. 警告機能：ビープ音、LEDインジケーター。（トルク設定値80％に達したとき）
4. 振動機能：トルク設定値90％に達したとき。
5. N-m、ft-lb、in-lb、kgf-cmの4種類のトルク単位が選択可能。
6. 2分間使用しないと、自動的に電源が切れます。
7. 30個のメモリ設定値が保存できます。
8. LCDバックライトディスプレイ。
※※推奨アクセサリ：ソケットとビットソケット。 ※※
➤Content : Provide storage steel box x1, Certificate of calibration report (Using ISO specification) x1, Operator’s menu(Bilingual) x1.

★【デジタルカスタマイズ】トルクレンチ - 充電式、納期は約2～6週間、充電式バージョン：USBプラグ（タイプC）を同梱。

カタログ参考文献見積関するお問合せ

製品番号	推奨使用範囲	設定範囲	差込角 (inches)	出荷精度	精度	ラチェット歯止め	解像度	長さ	重量 (g)	★充電式
WQ-30-1	4.5~30 Nm	1.5~30 Nm	1/4"	±1%	±1.5%	±2.5%	72	0.01 Nm	410	720	★WQ-30-1-C
WQ-30-2	4.5~30 Nm	1.5~30 Nm	3/8"	±1%	±1.5%	±2.5%	72	0.01 Nm	410	740	★WQ-30-2-C
WQ-60-2	9~60 Nm	3~60 Nm	3/8"	±1%	±1.5%	±2.5%	72	0.01 Nm	410	740	★WQ-60-2-C
WQ-135-2	20~135 Nm	6.8~135 Nm	3/8"	±1%	±1.5%	±2.5%	72	0.1 Nm	434	890	★WQ-135-2-C
WQ-135-3	20~135 Nm	6.8~135 Nm	1/2"	±1%	±1.5%	±2.5%	72	0.1 Nm	454	1080	★WQ-135-3-C
WQ-200-3	30~200 Nm	10~200 Nm	1/2"	±1%	±1.5%	±2.5%	72	0.1 Nm	565	1300	★WQ-200-3-C
WQ-340-3	50~340 Nm	17~340 Nm	1/2"	±1%	±1.5%	±2.5%	72	0.1 Nm	666	1420	★WQ-340-3-C
WQ-600-4	90~600 Nm	60~600 Nm	3/4"	±1%	±1.5%	±2.5%	24	0.1 Nm	940	3800	★WQ-600-4-C
★WQ-800-4	120~800 Nm	80~800 Nm	3/4"	±1%	±1.5%	±2.5%	24	0.1 Nm	1235	4800	★WQ-800-4-C
WQ-1000-4	150~1000 Nm	100~1000 Nm	3/4"	±1%	±1.5%	±2.5%	24	0.1 Nm	1235	4800	★WQ-1000-4-C

Notes 1: Accuracy guaranteed at 20% to 100% of full scale.
Notes 2: Item number with ★ mark is mean without stock.

※1 Nm=10.2 kgf-cm=0.738 lbf-ft=8.851 lbf-in

Rechargeable Type Features

Digital Torque Wrench - Cordless" utilizes the latest USB-C charging method that complies with EU standards.
It retains 80% of its capacity even after 300 recharges and has a battery life of up to 3 years (replaceable and serviceable).
With frequent use, it saves approximately 100 zinc carbon batteries a year, making it suitable for users who tighten screws frequently."

IC Protection with Dual Safeguards

To ensure the stability and safety of the charging and discharging process for user protection, the circuit board incorporates a series of protective mechanisms:
⚡ Over-discharge protection - It cuts off power in case of excessively low battery levels to prevent a reduction in battery lifespan.
⚡ Overcharge protection - When the battery reaches full charge, the circuit is disconnected to prevent overcharging.
⚡ Overcurrent protection - The circuit is interrupted in cases of excessive charging or discharging.
⚡ Over-temperature protection - Charging is halted if the temperature exceeds 55 degrees Celsius during the process.

Furthermore, it includes a voltage stabilization mechanism, reverse current protection, and dual-circuit protection ICs, providing you with added peace of mind during use.

The illustration of using wrench handle.

Digital Torque Wrench Demo (Please turn on subtitles )
