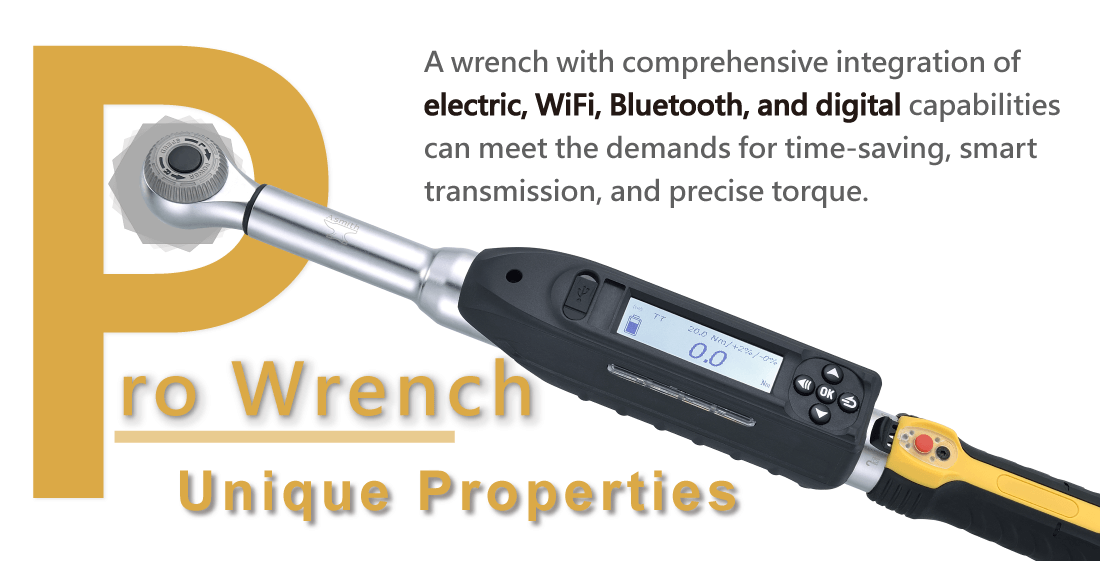

【Electric + Digital + Angle】Power Speed Digital Torque Wrench｜★Bluetooth & WiFi
【Electric + Digital + Angle】Power Speed Digital Torque Wrench｜★Bluetooth & WiFi
WA-E(-BW) series (5~220 Nm)
Features
1.Dual Mode：Both Power and Manual mode build in one single ratchet, screws can be quickly locked to save time

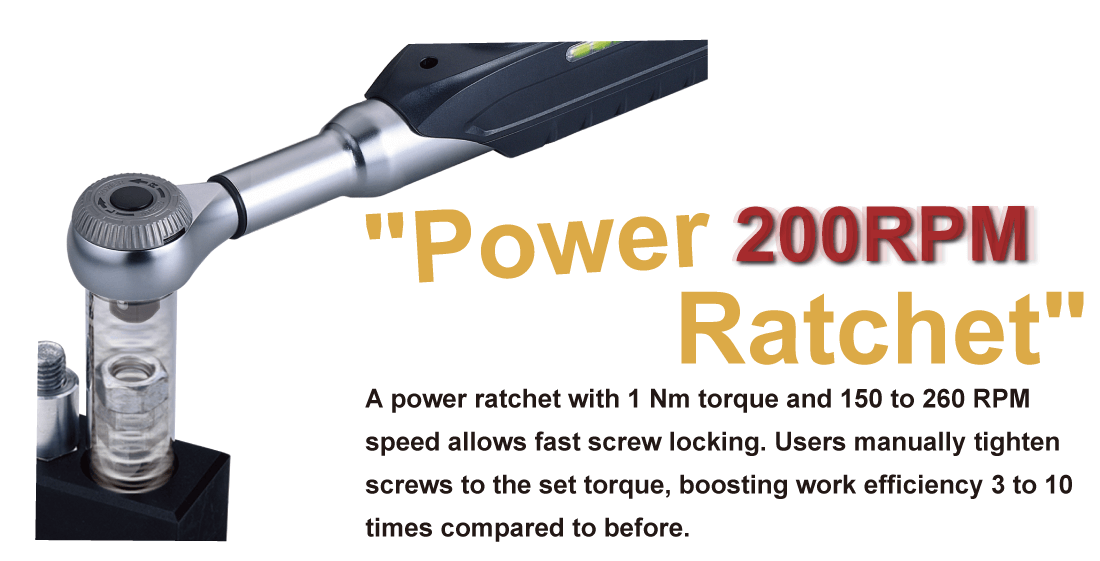

2.Power Gear rotation 150~260RPM, and torque is about 1 Nm
3.Connects via Bluetooth to devices and allows browsing of historical records at any time.

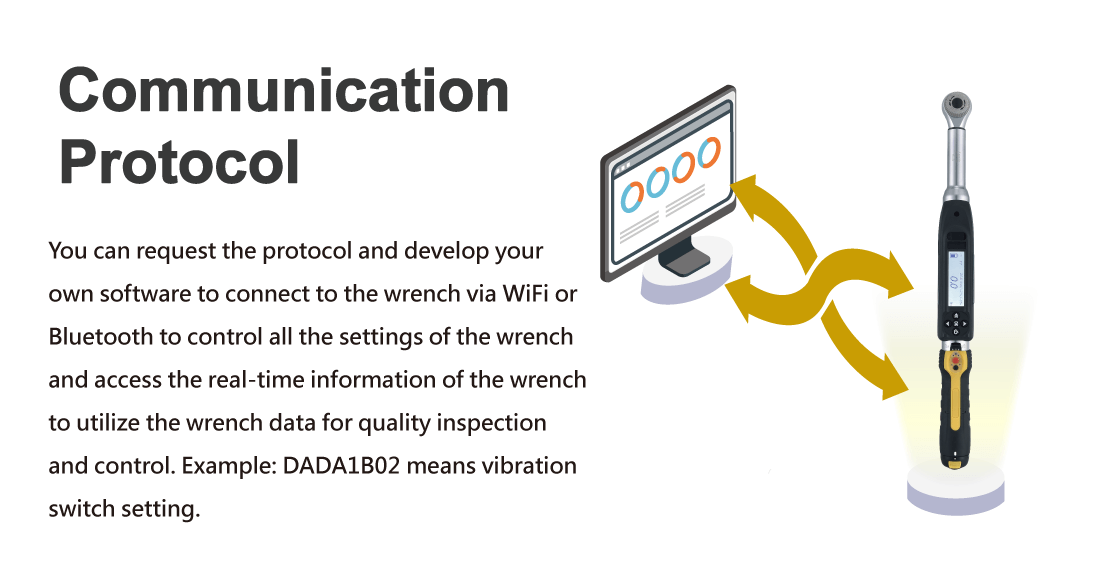

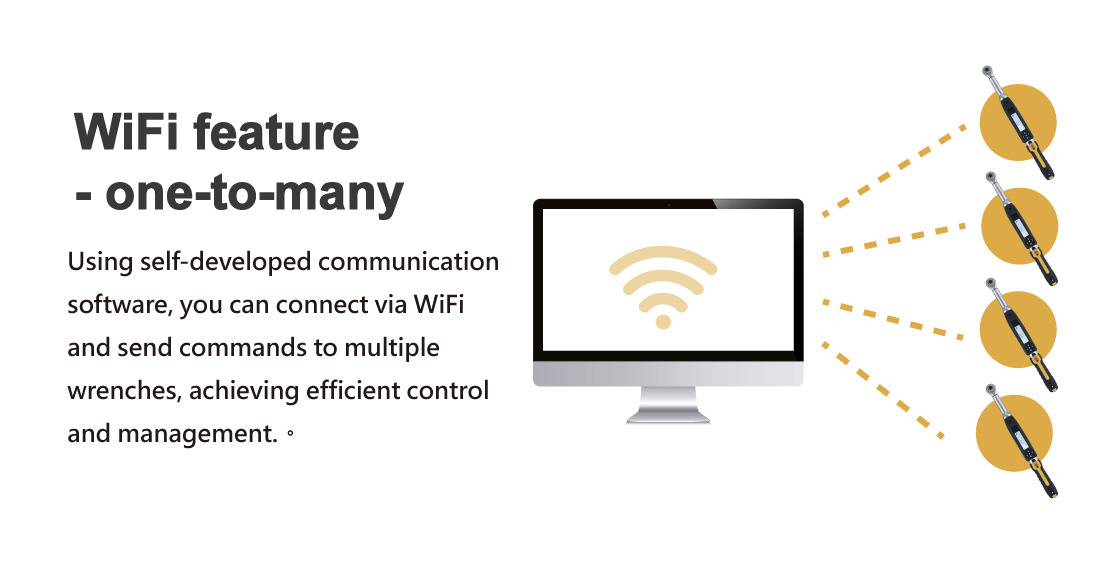

4.Connects to the computer via WiFi and enables issuing commands to multiple wrenches simultaneously through a self-developed communication protocol
5.There are four different warning LED indicators.

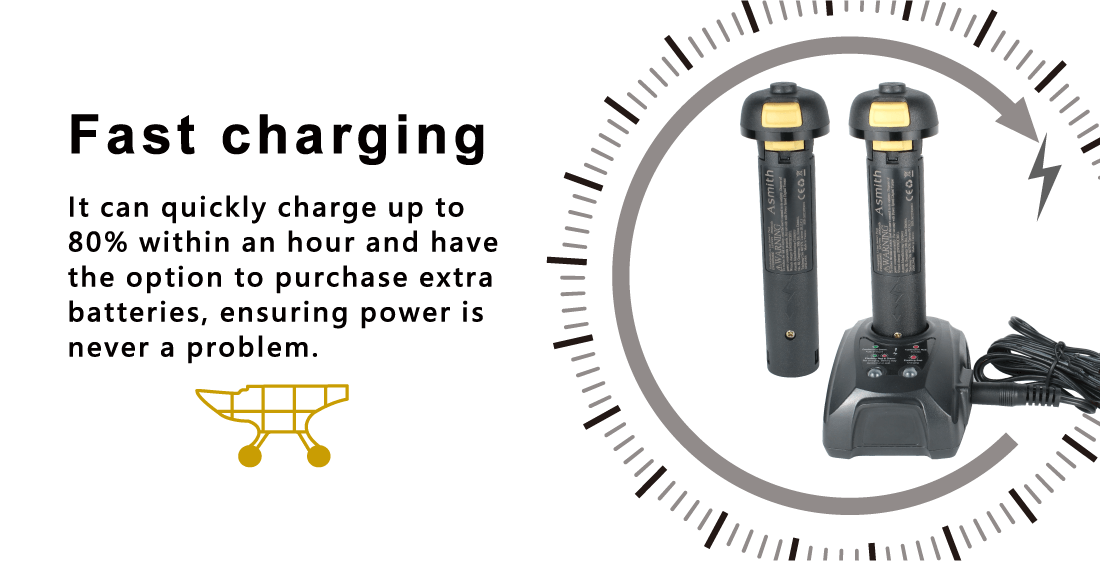

6.Detachable lithium batteries enable rapid charging, allowing a quick charge to reach above 80% in 60 minutes for a 2800mAh battery.
7.Can store 50 memory setting values

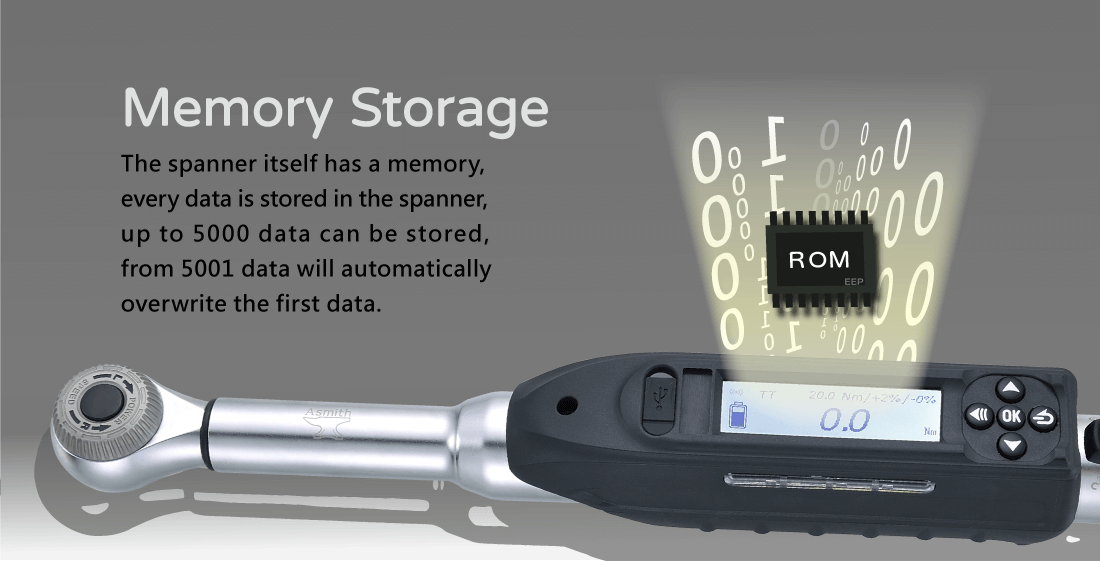

8.Up to 5000 torque history records capacity for specific QC analysis
9.Customize the torque or angle tolerance values yourself to achieve a more standardized range of error.
10.Reminder for the next calibration time.
11.The product complies with Reach and RoHS regulations
*Recommended accessory: socket set.
➤ Accessories: Plastic storage box x1, Factory calibration report (compliant with ISO quality certification standards) x1, Transformer(Taiwan / US Plug (Type A), 110V) x1, Charging stand x1, Rechargeable lithium battery x1, magnetic insert x1.
2.Power Gear rotation 150~260RPM, and torque is about 1 Nm
3.Connects via Bluetooth to devices and allows browsing of historical records at any time.
4.Connects to the computer via WiFi and enables issuing commands to multiple wrenches simultaneously through a self-developed communication protocol
5.There are four different warning LED indicators.
6.Detachable lithium batteries enable rapid charging, allowing a quick charge to reach above 80% in 60 minutes for a 2800mAh battery.
7.Can store 50 memory setting values
8.Up to 5000 torque history records capacity for specific QC analysis
9.Customize the torque or angle tolerance values yourself to achieve a more standardized range of error.
10.Reminder for the next calibration time.
11.The product complies with Reach and RoHS regulations
*Recommended accessory: socket set.
➤ Accessories: Plastic storage box x1, Factory calibration report (compliant with ISO quality certification standards) x1, Transformer(Taiwan / US Plug (Type A), 110V) x1, Charging stand x1, Rechargeable lithium battery x1, magnetic insert x1.
Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Note1: The accuracy range for torque is from 10% to 100% of the maximum operating value.
Note2: The recommended usage range for this series is equal to the display and setting range.
Note3: The applied force (kgf) = recommended torque (kgf∙cm) / effective length (cm) (distance from the center of the handle to the center of the torque application point).
※1 Nm=10.2 kgf-cm=0.738 lbf-ft=8.851 lbf-in
Please use your phone to open
Android APP Download： Torq Wrench
IOS APP Download： Torq Wrench
| Product Specifications | |
|---|---|
| Memory Capacity | 5000 sets |
| Torque Units | Nm, kg.cm, kg.m, ft-Ib, in-Ib |
| Dust Protection Rating | IP5X |
| Operating Temperature | -20°C ~ 60°C |
| Operating Humidity | Below 90% (Optimal Below 65%) |
| Storage Temperature | ＜35°C(Optimal 23°C) |
| Drop Test | 1m |
| Shaking Test | 100Hz & 500Hz & 2000Hz |
| Salt Spray Test | 48hrs |
| Battery specifications | 18650 |
| Battery Charging Cycle | Up to 600 times |
| Battery Capacity | 2800 mAh |
