Heavy-Duty Anti-Vibration Leveling Feet

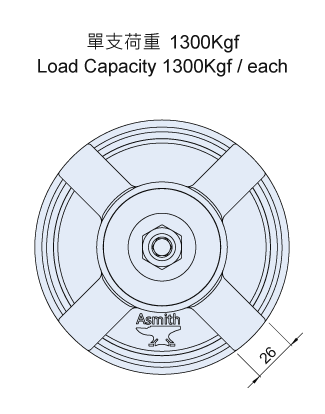

DK-09 series (Black / Load Capacity 1300 kgf)
Features
【The mounting hole should be a clearance hole only (do not tap). The M16 thread is for alignment and is not load-bearing.】
★Self-Aligning Capability: Featuring a Swivel Washer that automatically adjusts to uneven surfaces, ensuring the machine foot sits flush with the floor for maximum stability.

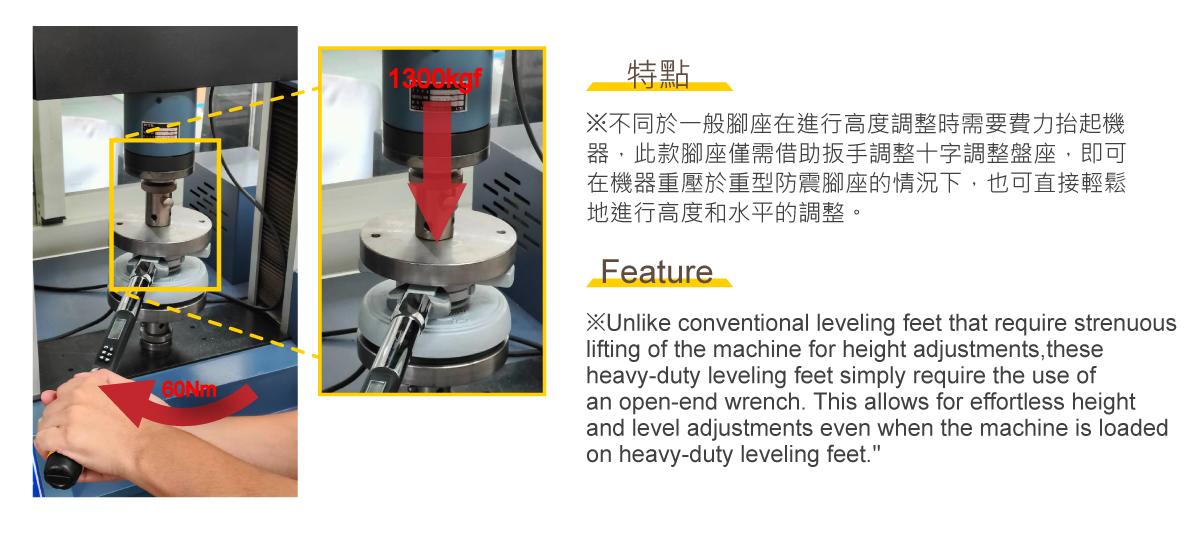

．High Load Capacity: Rated for loads up to 1,300 kgf. The Adjustment Nut allows for precise leveling with a torque of 60 Nm using a 26mm open-end wrench.

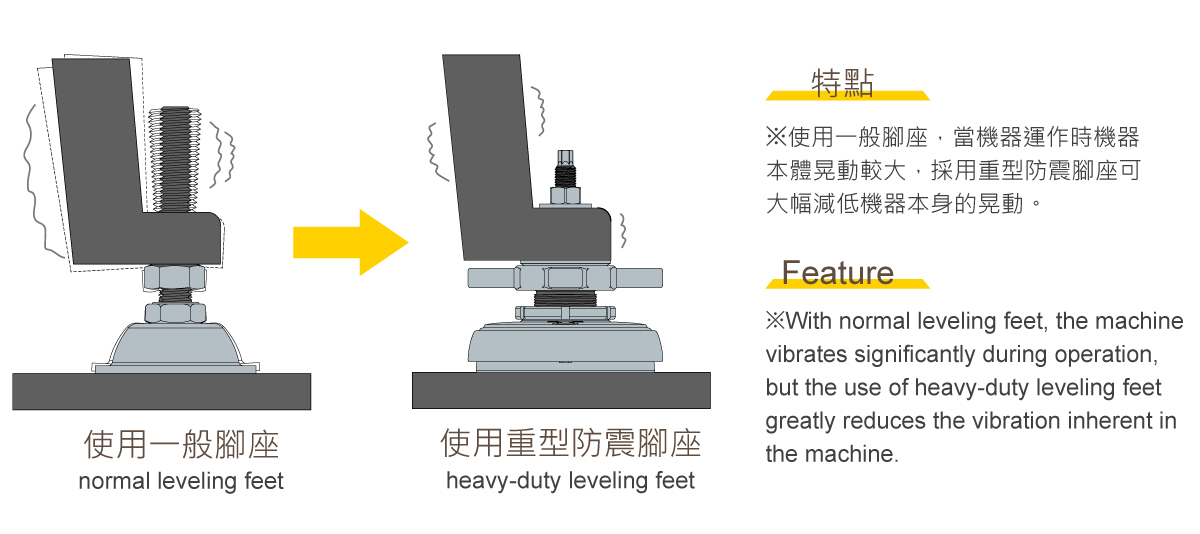

．Anti-Vibration & Stability: Designed to dampen machine vibration, improve workspace conditions, and reduce floor-to-floor resonance. Features anti-slip and wear-resistant properties.
．Secure Locking Mechanism: Equipped with a Lock Nut. Using a model with a Lock Nut is highly recommended for high-vibration environments to prevent the Adjustment Nut from loosening during operation.
．Industrial Applications: Ideal for gantry systems, injection molding machines, and various industrial processing equipment.
★Fire Resistance: Complies with the UL94 V0 fire resistance rating.
➤Material-Base: FC-250 Powder coating (Black)
➤Material-Threaded Stem (Bolt): S45C with heat treatment, Manganese Phosphate coating
➤Material-Anti-Vibration Pad (Cushion): Chloroprene Rubber (Black)
➤Material-Lock Nut: FCD45, Powder Coating (Black)
★Self-Aligning Capability: Featuring a Swivel Washer that automatically adjusts to uneven surfaces, ensuring the machine foot sits flush with the floor for maximum stability.
．High Load Capacity: Rated for loads up to 1,300 kgf. The Adjustment Nut allows for precise leveling with a torque of 60 Nm using a 26mm open-end wrench.
．Anti-Vibration & Stability: Designed to dampen machine vibration, improve workspace conditions, and reduce floor-to-floor resonance. Features anti-slip and wear-resistant properties.
．Secure Locking Mechanism: Equipped with a Lock Nut. Using a model with a Lock Nut is highly recommended for high-vibration environments to prevent the Adjustment Nut from loosening during operation.
．Industrial Applications: Ideal for gantry systems, injection molding machines, and various industrial processing equipment.
★Fire Resistance: Complies with the UL94 V0 fire resistance rating.
➤Material-Base: FC-250 Powder coating (Black)
➤Material-Threaded Stem (Bolt): S45C with heat treatment, Manganese Phosphate coating
➤Material-Anti-Vibration Pad (Cushion): Chloroprene Rubber (Black)
➤Material-Lock Nut: FCD45, Powder Coating (Black)

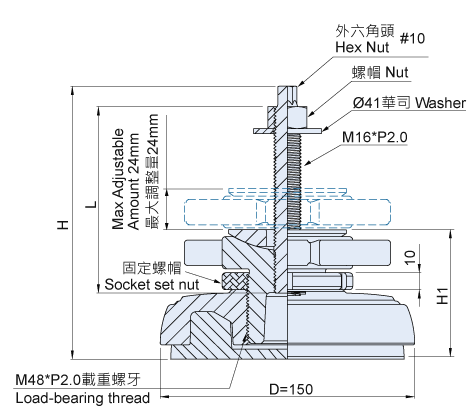

Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
※Place the Swivel Washer on the base, then slowly lower the machine into position. (Note: The machine's mounting hole must be a clearance hole—do not tap. The M16 central thread is for alignment only and is not load-bearing.)

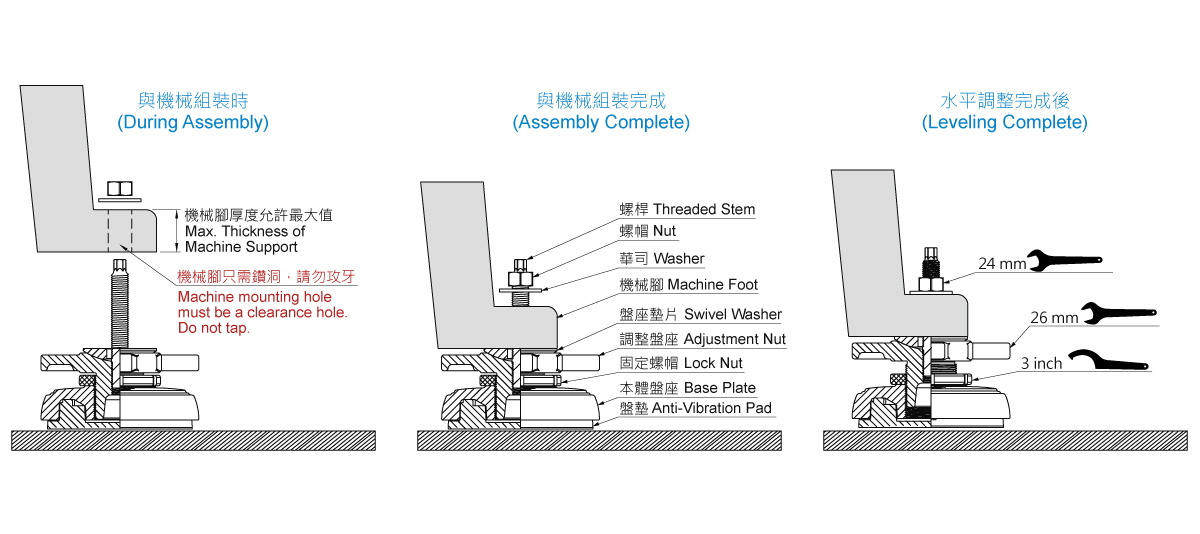

※Insert the Threaded Stem from above through the Machine Foot and the Swivel Washer, threading it into the Adjustment Nut. Then, place the Washer and Nut onto the top of the Threaded Stem.
※Use a 26mm open-end wrench to rotate the Adjustment Nut to achieve the desired height and level the machine.
※Once leveled, tighten the top Nut and Washer to secure the machine to the mount.
※Finally, use a 3-inch hook spanner to tighten the Lock Nut located beneath the Adjustment Nut to prevent any displacement under heavy loads.
