Nylon Base Anti-Vibration Leveling Feet

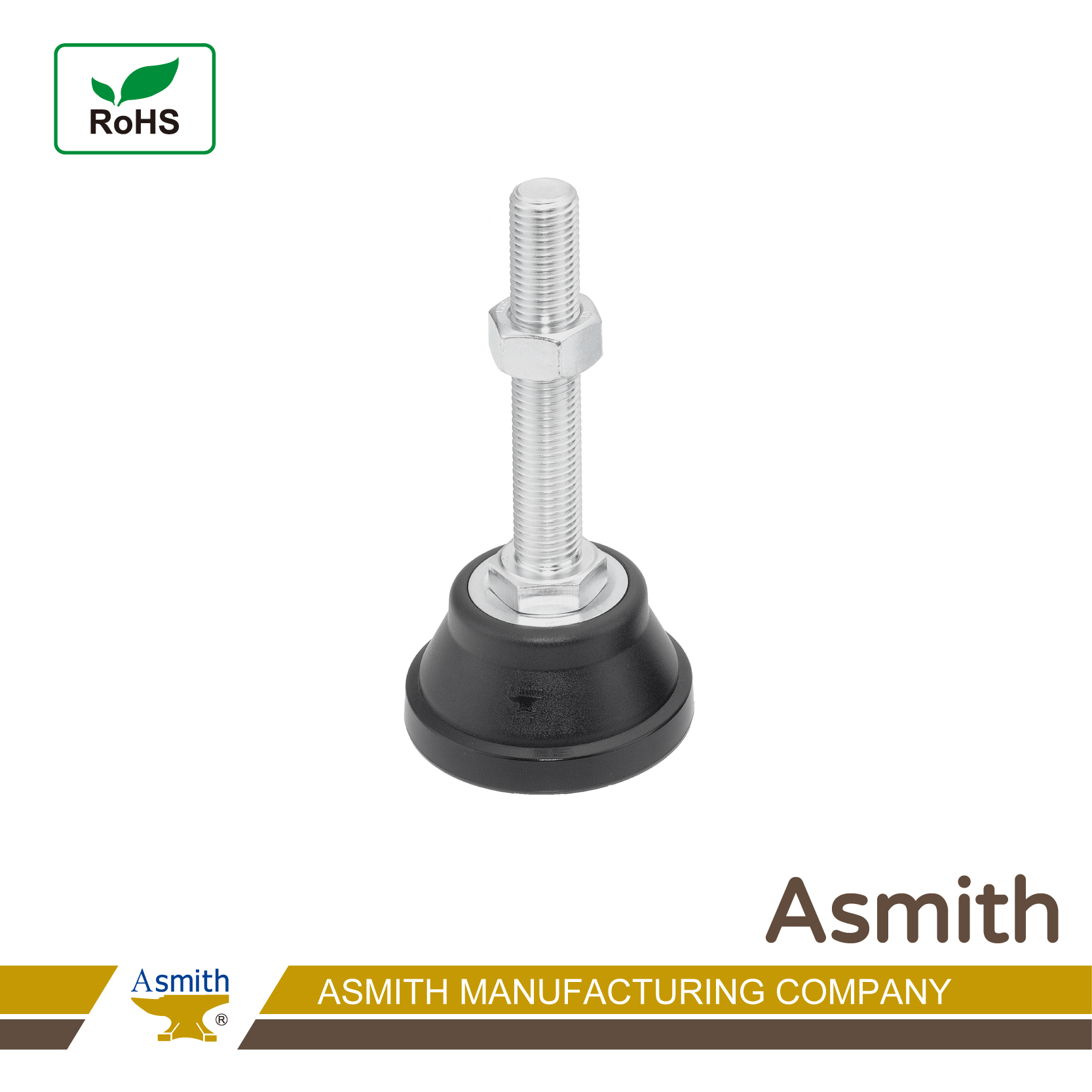

DK(S)-01 - (M16)SUS304 / Nylon Base Anti-Vibration Leveling Glide

DK(S)-01 series - (M16)

Features
  • 9ba9b4383d1ae5d9bc81632303798092
  • 5c00dfe917c2d5d12c57e73f05274f04
  • 13c88679be0358e0448b3d0c8fb59e5b
  • b0db7cab8764cdc4bca884cd4abc2b4b
Load capacity 700 kgf. Resistance to shock, rust (DS Series), slip, alkali, abrasion, greasiness.

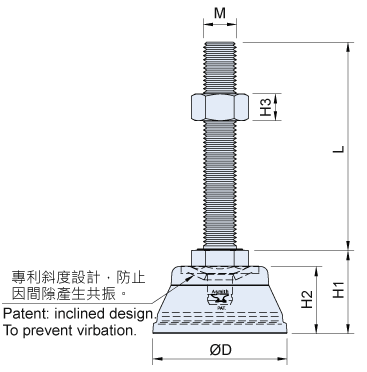

Patent design: The rake of bolt's bottom and base's hole design is to prevent vibration while they are assembled.
The screw is smooth, easily & quickly install.
★ Use the original raw material compliant with UL94 HB standards.
✩ The recommended load capacity is base on the graph, the actual damage load capacity is more than the recommended load capacity. For avoid the uneven distribution of machine weight, please follow the recommend load capacity.
✩ It is recommended to use in an environment with relative humidity around 40-60% to ensure its performance and longevity. Do not use in dry room environments.
➤Material-Base: Supertough Nylon(STPA66), Black.
➤Material-Cushion: Rubber (NBR), Greasiness, Alkali / Heat 130℃.
➤Material-Bolt: DK-01 Steel (SCM), Zinc plated. DS-01 Stainless steel (SUS304)-Electro Polishing.
 Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Item No.Type Bolt Material / Finish Base Material / Finish Dimensions Load Capacity
(kgf)
Weight
(g)
Size of Screw
(M)
Bolt length
(L)
W H1 H2 H3 Base DIA
(D)
Without CushionSteel (SCM) / Zinc platedNylon / BlackM16*P2.0100244132.71365700290
Without CushionSteel (SCM) / Zinc platedNylon / BlackM16*P2.0150244132.71365700355
Without CushionSUS304 / Electro Polishing Nylon / BlackM16*P2.0100244132.71365700290
Without CushionSUS304 / Electro Polishing Nylon / BlackM16*P2.0150244132.71365700355
With CushionSteel (SCM) / Zinc platedNylon / BlackM16*P2.01002444.636.21367700308
With CushionSteel (SCM) / Zinc platedNylon / BlackM16*P2.01502444.636.21367700373
With CushionSUS304 / Electro Polishing Nylon / BlackM16*P2.01002444.636.21367700308
With CushionSUS304 / Electro Polishing Nylon / BlackM16*P2.01502444.636.21367700373
