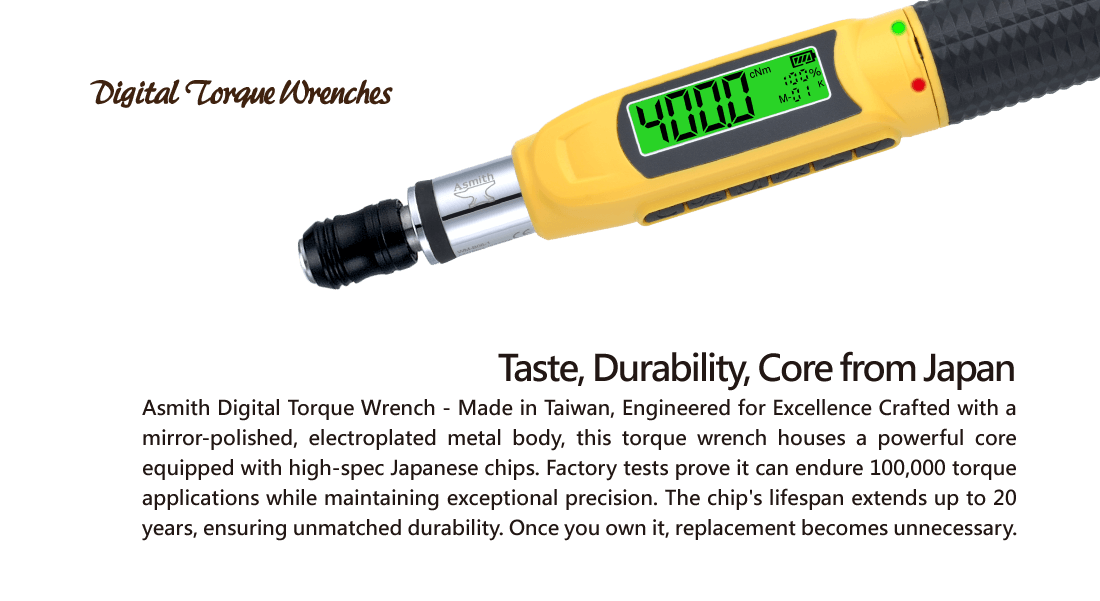

Mini Digital Torque Wrenches / Screwdrivers
WM-SD series (0.1~4 Nm / Screwdriver)
Features
-It can be used with phillips bit, slotted bit, hexagon bit and six-lobe bit.
1. Use the piezoelectric effect converted into accurately torque value.
2. Two modes : F(Track) / K(Peak).
3. Warning function : Beep, LED indicator. ( When reach the torque setting value 80%)
4. Vibration function : When reach the torque setting value 90%.
5. Three torque units are available : cN-m, in-lb, kgf-cm.
6. Automatically powers off when not in use for 2 minutes. ( The non-shutdown mode can be customized )
7 .Can store 30 memory setting values.
8. LCD backlight display.
※※ Suggested accessories: 1/4” Screwdriver Bit ※※
➤Content : Provide storage steel box x1, Certificate of calibration report (Using ISO specification) x1, Operator’s menu(Bilingual) x1, Mini screwdriver(replace the battery) x1, 1/4” Hex Shank Socket Adapter
1. Use the piezoelectric effect converted into accurately torque value.
2. Two modes : F(Track) / K(Peak).
3. Warning function : Beep, LED indicator. ( When reach the torque setting value 80%)
4. Vibration function : When reach the torque setting value 90%.
5. Three torque units are available : cN-m, in-lb, kgf-cm.
6. Automatically powers off when not in use for 2 minutes. ( The non-shutdown mode can be customized )
7 .Can store 30 memory setting values.
8. LCD backlight display.
※※ Suggested accessories: 1/4” Screwdriver Bit ※※
➤Content : Provide storage steel box x1, Certificate of calibration report (Using ISO specification) x1, Operator’s menu(Bilingual) x1, Mini screwdriver(replace the battery) x1, 1/4” Hex Shank Socket Adapter
Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS
Notes: Accuracy guaranteed at 20% to 100% of full scale.
※1 cNm=0.01 Nm=0.102 kgf-cm=0.088 lbf-in
The illustration of using wrench handle.
Digital Torque Wrench Demo (Please turn on subtitles
) Unit: mm [※1 kgf ≒ 10 N]Alternative or choosable accessories
