Lid Stay Holders, Regulator

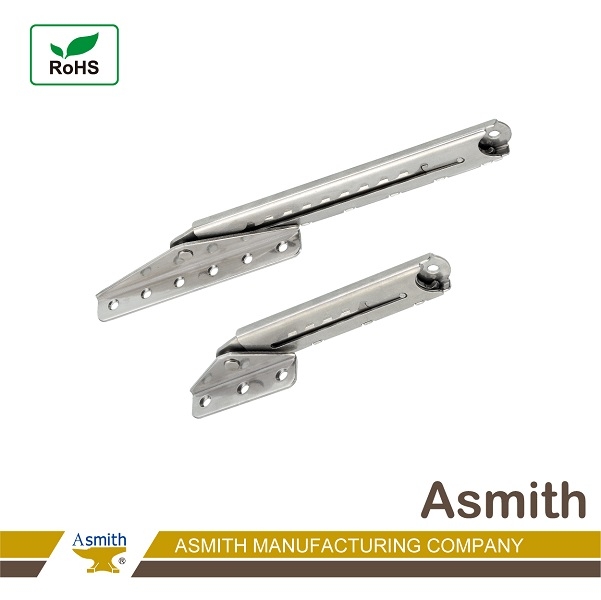

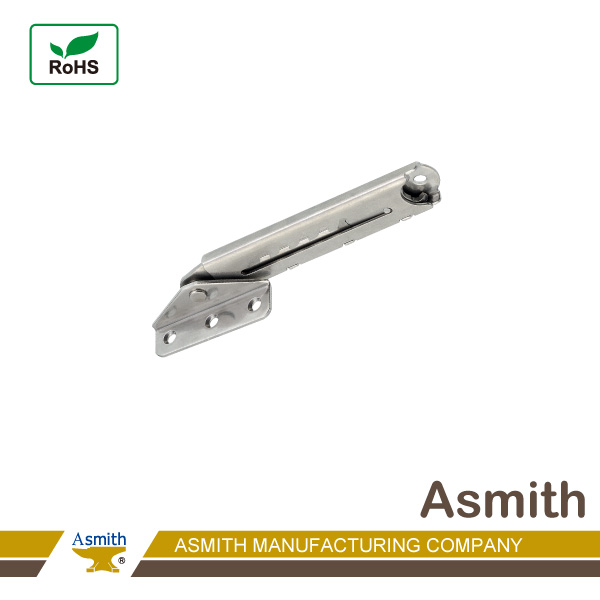

FS-01 - SUS304/Lid Stay Holder, Regulator

FS-01 series (SUS304)

Features

Lid Stay Holder｜Circulating operation procedure, easy to operate. (Open stage by stage → Fully opened → Close) Close only after fully opened.

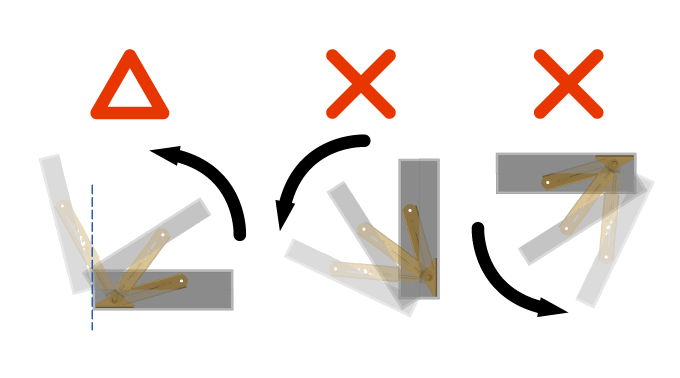

★Door opening manner: Upward opening.
Countersunk hole design, applicable to flat head screws.
In accordance with RoHS.
➤Material: SUS304(stainless steel)-vibration ground

2D 3D Catalog Inquiry ☑️

　Unit: mm [※1 kgf ≒ 10 N]SPECIFICATIONS

Item No.	Type	Material	Finish	Dimensions					Load Capacity (kgf)	Weight (g)
Item No.	Type	Material	Finish	L1	L2	L3	W	D1	Load Capacity (kgf)	Weight (g)
FS-0110	5 positioning stages	SUS304	Vibration ground	214	164	140	30	6.5	58	245
FS-0120	10 positioning stages	SUS304	Vibration ground	355	235	213	30	6.5	58	397

Circulating operation procedure, easy to operate. (Open stage by stage → Fully opened → Close) Close only after fully opened.
